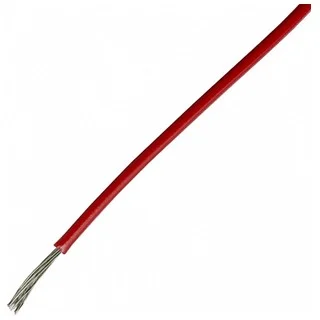

WEICO UL1007 300V 30AWG HOOK-UP WIRE

Stranded Tinned Copper single conductor hook-up wire

Conductor Size : 30AWG

Number of strands : 7/38AWG

Nominal insulation : 0.012 Inch

Overall diameter : 0.044 Inch

Temperature range : -40ºC to 105ºC

Voltage rating : 300V

Color Coded Polyvinylchloride Insulation

Passes UL VW-1 Flame Test

UL1007 , UL1569 and CSA TR-64 Approved
